Metal catalytic converter for motocycle
  • Product Name :Metal catalytic converter for motocycle
  • Material : Stainless steel
  • Cells Density : 100-400 CPSI
  • Size : Customize
  • Usage : Motocycle Catalytic Converter
  • Color : ivory
  • Shape : Cylinder
  • Packing : in Cartons and wooden pallet
  • Payment Term : T/T or L/C
  • Delivery Time : within 10 days after receipt payment
  • contact us

Prev: Standard motorcycle exhaust system honeycomb metal catalytic converter    Next: None

More Product Information

1. Product use

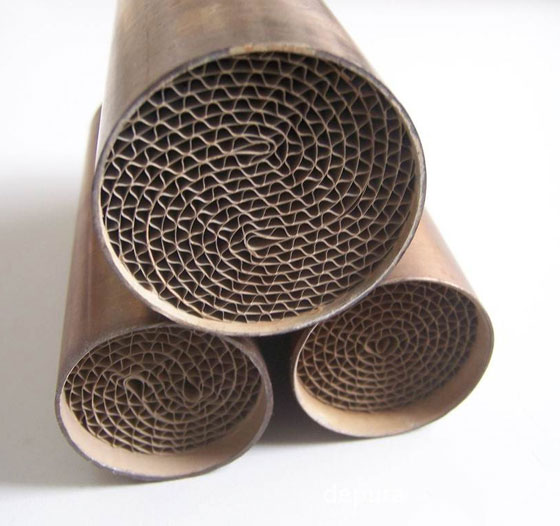

The motocycle catalytic converter is coated with rare earth element and noble metals of Pt,Pd,Rh.When the engine exhaust passing through the three-way catalytic converter the elements of CO would be oxidized into CO2,the HC is turned into H2O and CO2,while the NOX is deoxidized into nitrogen.The catalytic converter substrate is made of metal honeycomb with stainless steel crust and Fe-Cr-Al honeycomb body,it is a critical part of motocycles and off-road engins to make the exhaust emission meet government standard

2.  Specification:

  • ● Substrate: Metal catalytic converter(Fe-Cr-Al alloy)
  • ● Light-off temperature:Co≤200℃,HC≤200℃,NOX≤200℃
  • ● Coating losing rate ≤3%
  • ● Conversion rate:CO≥90%,HC≥90%.NOX≥80%
  • ● Durability:not less than 15000 kilometers

3.  Technical Data:

Shape Meterial Diameter(mm) Length(mm) Channel density(cpsi)
Cylinder Fe/Cr/Al 20 20 100/200
Cylinder Fe/Cr/Al 20 80 100/200
Cylinder Fe/Cr/Al 30 100 100/200
Cylinder Fe/Cr/Al 28 60 100/200
Cylinder Fe/Cr/Al 28 100 100/200
Cylinder Fe/Cr/Al 35 30 100/200
Cylinder Fe/Cr/Al 35 40 100/200
Cylinder Fe/Cr/Al 35 60 100/200
Cylinder Fe/Cr/Al 35 70 100/200
Cylinder Fe/Cr/Al 35 100 100/200
Cylinder Fe/Cr/Al 38 100 100/200
Cylinder Fe/Cr/Al 42 100 100/200
Cylinder Fe/Cr/Al 48.6 70 100/200/300
Cylinder Fe/Cr/Al 63 50 100/200/300/400
Cylinder Fe/Cr/Al 101.6 100 400

All the data is only for reference, specific sizes and hole shapes are according to customers' requirements.

Remark: The size can be Customized
