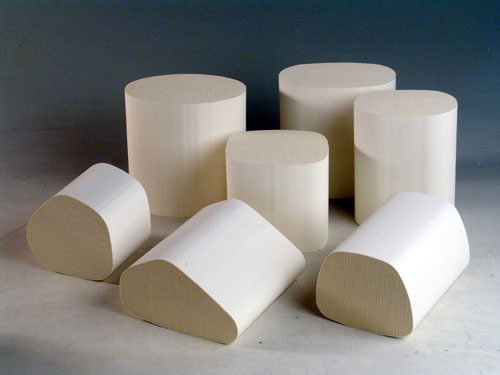

Honeycomb ceramic catalyst substrates
  • Product Name :Honeycomb ceramic catalyst substrates
  • Material : Cordierite
  • Cells Density : 100-600 CPSI
  • Size : Customize
  • Usage : Car Catalytic Converter
  • Color : ivory
  • Shape : Triangle
  • Packing : in Cartons and wooden pallet
  • Payment Term : by T/T or L/C
  • Delivery Time : within 10 days after receipt payment
  • contact us

Prev: Cordierite honeycomb ceramic    Next: Honeycomb ceramic for exhaust purification

More Product Information

Honeycomb Ceramic Catalyst Substrates

The main harmful gases from the vehicle are carbon monoxide (CO), nitrogen oxides (NO), hydrocarbons (HC).coated with catalysts, honeycomb ceramic is applied in catalytic converter of gasoline vehicle to catalyze, convert and purify the exhaust to CO2,water,nitrogen to making vehicle exhaust reaching standards of Euro IV and Euro V.

2.Dimensions standards
Item Standard value Tolerance range Remark
wall thickness 0.17MM +0.03MM
density scope 440g/L ±60g/L
Outside dimension ≤100MM ±1MM
>100MM ±1%
Perpendicularity  ≤100MM ≤1%height
Parallelism  >100MM ≤1%height

3.Physical and chemical properties
Item Standard value Inspection Method
chemical components Al2O3 35.2±1% Chemical analysis
SiO2 50.9±1%
MgO 13.9±1%
Cordierite Crystal phase ≥90% X-ray diffraction techniques
Compressive AA xis ≥15 Mpa Compressive strength technique
strength BA xis ≥2 Mpa
  CA xis ≥0.15 Mpa
Water absorption 20-26% Weighting methord
Softening point ≥1400 High temperature oven
Refractory ≥1600 Cryptol furnace
CTE(800℃) ≤1.2*10-6/℃ Netzsch dil 402  PC
Thermal shock resistance 550℃three times(air cool) Muffle furnace

4. Specification
100 holes / inch 2 ~ 600 holes / inch 2 profiled the typical product specifications
NO. Section size (mm) Cross-sectional area (mm2) Dimensions Height (mm)
1 Triangle 143.5×84 9108
≤200(Production of various high degree of product according to customer requirements)
2 Trapezoidal 112.2×92×152.4 8788
3 Trapezoidal  10336
4 Rectangle  10529
5 Shaped  9612
6 Pear-shaped  9577
All the data is only for reference, specific sizes and hole shapes are according to customers' requirements
4.The advantage of the products:
● Thin wall thickness
● Low pressure drop
● High surface area
● Height compressive strength
● Low thermal expansion coefficient
● Good thermal impact resistance and thermal shock resistance
● Excellent compatibility with various active composition in catalyst
●Good performance in cold start, low ignition temperature, quick temperature rise, little air resistance, and high conversion efficiency.

REMARK: The SIZE can be Customized
