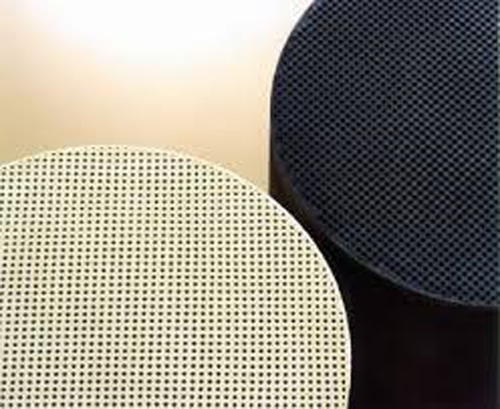

Cordierite diesel particulate filter
  • Product Name :Cordierite diesel particulate filter
  • Material : Cordierite
  • Cells Density : 200~400 CPSI
  • Size : Customize
  • Usage : Car Catalytic Converter
  • Color : white
  • Shape : Round
  • Packing : in Cartons and wooden pallet
  • Payment Term : T/T or L/C
  • Delivery Time : within 10 days after receipt payment
  • contact us

Prev: Ceramic diesel catalytic converter substrate for automobile    Next: Diesel perticular filter catalytic converter substrate for automobile

More Product Information

Cordierite Diesel Particulate Filter

1. Product use

Cordierite DPF, which consists of parallel channels, separated by thin walls made of porous cordierite. The channels are open at one end, but plugged at the other. During operation, the exhaust gases are forced to flow through the thin walls and leave particulates trapped in the filter walls.Cordierite DPF is mailnly used in the diesel engine automobile to solve the air pollution problem. The effect is better than the ceramic substrate.DPFs enable highly efficient particulate matter trap systems by offering:

2.Dimensions standards

  • Chemical Compounds SiO2: 50.9±1% AL2O: 35.2±1% MgO: 13.9±1%
    Compressive Strength(normal temperature) 12Mpa
    17×10-6 °C
    Wall-thickness (100 cell/inch2) 0.45-0.52 mm
    Porosity 48-51%
    Maximum working temperture 995°C
    Filtration Rate of Carbon 82%
  • 3.Specification of Dimension:
  • Round shape Ellipse shape
    Specification(mm) Number of channels (cells /square inch) Specification (mm) Number of channels (cells /square inch)
    Φ200×100 200 169.7×80.8×152.4 400
    Φ150×150 300 169.7×80.8×115 300
    Φ144×152.4 400 144.8×81.3×100 300
    Φ150×70 400 127×63.5×107 300
    Race track shape
    120.65× 80.01× 50.8 200 120.65× 80.01×76.2 400
    120.65× 80.01× 76.2 200 172× 84× 80 300
  • All the data is only for reference, specific sizes and hole shapes are according to customers' requirements.
  • 4.Benefits of Products:
  • • High specific surface area: ensure exhaust gas could contact with catalyst enough.
  • • Stable water absorption: guarantee catalyst could be firmly and evenly coated on the surface of substrate, so it’s no waste for too thick coating.
  • • Warm-up characters: after starting up engine, the temperature of substrate could reach the active temperature of catalyst in the shortest time.
  • • Low exhaust resistance: ask exhaust resistance of substrate to engine low, so that it won’t affect the performance of engine.
  • • High intensity: substrates work in bumpy cars, so the intensity of substrates must be too high to be destroyed.
  • • Perfect assembly: substrates are parts of exhaust; perfert appearance and exact dimension could ensure assembly perfect.

Remark: The size can be Customized
